You may think that the infinity edge feature is reserved for the pools you see sitting atop a fancy hotel in Los Angeles where the water appears to run right over the edge. Or maybe you’ve enjoyed a pool with this feature while on vacation where the infinity edge appeared to drop off into another body of water like a lake or the ocean. While these are all excellent uses for an infinity edge, it’s important to keep in mind that you’re not limited to using this feature only when you have a steep drop off near another body of water.
In this unique project, we want to showcase how we built a custom pool to include not only an infinity edge, but one that includes a second lower pool all its own. There were several reasons why this became the dream design for our client. Foremost, they wanted to find a way to work with a challenging slope in their backyard while enhancing the aesthetics of their pool. They also desired a separate pool space that felt more intimate and secluded. Finally, their property is along the Yellow Breeches, and they wanted to find a way to incorporate the sound of running water to reflect the sound of the creek.
Take a look at how we were able to accommodate all of these wishes by incorporating an infinity edge feature into their pool design.
Working with the grade of the landscape.
This particular project presented the challenge of a sloped landscape that would require some substantial excavation and regrading to make it level for a swimming pool. The property was known to have limestone underground, so there would be the risk of hitting rock if we did any major excavating. It would also add to the cost of the project, more so than starting on fairly level land.
The alternate option we recommended to this client was designing the pool with an infinity edge to work with the existing grade of the property as much as possible. The infinity edge accommodates a slope by allowing for an exposed wall and for the water to run over the edge into a catch basin. The end result is not just a solution to the grading challenge, it’s an outstanding feature that greatly enhances the aesthetics and wow factor of the pool.
Enhanced aesthetics.
To dive a little deeper into the enhance aesthetics of this pool, the infinity edge and the lower catch base, as well as various areas of exposed sides of the pool were all finished with natural limestone. We recommended using natural stone over a veneer to ensure that as water runs over the edge of the pool, deterioration or a buildup of salt residue would not be an issue. Natural stone is far better at holding up to this daily wear and tear.

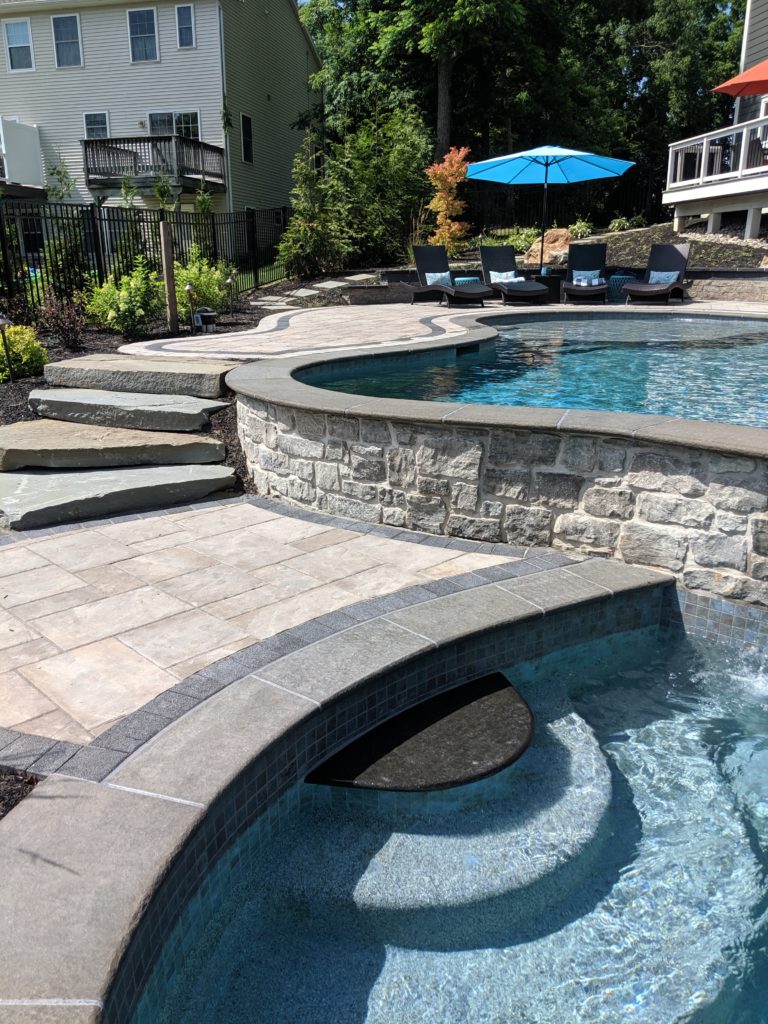

The stone was selected to perfectly blend with the house’s existing stone finishes, and gave a nod back to the area that is known for its limestone. When standing at the lower end of the pool, you can see how the many layers of stone and hardscaping create a stunning backyard scape that certainly grabs your attention.
Filtration and Function.
Many people don’t fully understand how the hydraulics and filtration systems for these magnificent looking features work. And they shouldn’t really need to! It is the job of the pool professional to understand and design the system to meet all pool and spa codes along with meeting expectations from the client on how things look and will operate.
Keeping the correct amount of water moving and circulating between the main pool and the catch pool below can be tricky depending on what you are trying to accomplish. As the water from the “upper” pool spills over the edge to the “lower” catch pool, leaves and debris will spill over with it. A well designed hydraulic system will incorporate a pump and filter for this lower pool to ensure that it stays clean. In this particular job, we installed variable speed pumps, cartridge filters and tied the plumbing system into a pool heater so that the water is sanitized and crystal clear as well as heated! The water then returns to the main “upper” pool via fittings in the pool floor to create the overflowing edge. By returning the heated water to the floor of the pool we ensure efficient heating as well as a water surface that doesn’t show “ripples”, giving the glass like appearance that clients find desirable in vanishing edge designs.
Two separate and functional swimming areas.
What’s most unique about this particular pool is that the client wanted to make the lower basin, which is typically a slender catch basin, into a fully functional second swimming area. Because we custom design each and every one of our pools, we were happy to accommodate this special request. More than just an additional swimming area, the lower basin includes several jets to give it a spa-like feel. The end result was two pools in one, each with a very different feel and view. For a family with small children, this is an ideal setup where the kids can enjoy splashing in the upper pool while the adults enjoy calmer waters in the lower pool, along with the soothing sound of the infinity edge’s waterfall.
Have you ever envisioned building a swimming pool that includes an infinity edge feature? We can help you explore all the possibilities! Contact us today so we can start a conversation.
